SPA2000 digital power meter finds extensive application in electrical and electronic measurements, spanning across various industries including electronics manufacturing, communication technology, photovoltaic and wind power generation, aerospace technology, and power supply and distribution. SPA2000 excels in the precise measurement of power, voltage, current, frequency, and other essential parameters for a wide array of equipment. With a voltage measurement range of 6V to 1,000V and a current measurement range of 1A to 50A, it effectively meets the measurement requirements of most devices, ensuring swift and accurate results.

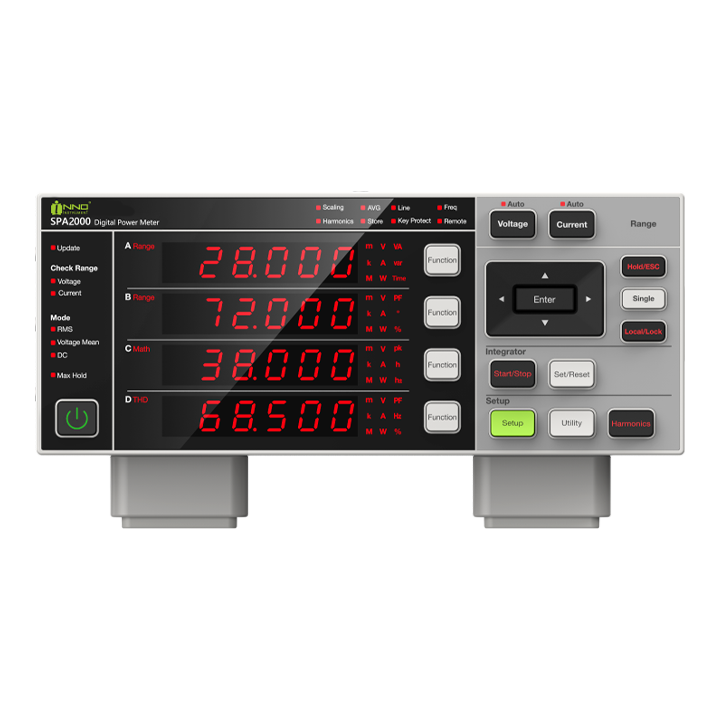

SPA2000 Digital Power Meter – Single-channel Digital Power Meter
A cost-effective and compact digital power meter that leverages digital signal processing technology to ensure accurate measurement and calculation of critical parameters like output power, voltage, current, and more for electrical equipment.
High measurement accuracy: ± (0.1% of reading + 0.05% of the range)
Voltage measurement range: 6V - 1,000V
Current measurement range: 1A - 50A
Bandwidth: DC, 0.1Hz - 100KHz
Sampling rate: 100kS/s
Up to 100th harmonic measurements
4 D/A output modules
Overview
Welcome your visitors with elegance and flexibility and center the world around your website.
- Create unique websites
- Automate your busy work
- Optimize all your efforts
Applications
Change the colors to match your brand and vision, add your logo, swap out the content and you are good to go.
- Give your website a name
- Add your unique content
- Add your stunning images
Features
An attractive, user-friendly website can give your business the edge over the competition.
- Creative campaigns
- Google Analytics
- Social Mediaproduct_
Support
With Ekko you don't need to know any code to create a beautiful website.
- Support forums
- Video tutorials
- Extensive documentationproduct_support
Single-channel digital power meter with a greater cost-effectiveness!
Supports fast measurement
SPA2000 digital power meter offers a wider current and voltage measurement range, accurately capturing parameters for most electrical devices without the need to switch measurement modes. This seamless integration of integral and harmonic measurements makes the process more convenient and efficient.
Our premier power analyzer with top-tier quality and precision measurements
High measurement accuracy data acquisition, customized for enterprise R&D testing with modular solutions.
Simultaneous parameter measurement
All AC and DC parameters can be measured, and integral and harmonic measurements can be conducted simultaneously without the need to switch measurement modes.
Computing function
SPA2000 supports a variety of computation functions, enabling the display of peak factors, arithmetic operation results, and average active power.
Wide current and voltage measurement range
Current measurement ranging from one to tens of amperes, and voltage measurement ranging from 6V to 1,000V. SPA2000 can not only be utilized for current/voltage measurement in a single procedure but can also track current/voltage fluctuations across a wide dynamic range when electrical equipment transitions from standby to power-on. All of this can be accomplished with a single power meter and a single module.
Fast signal display and automatic updates
The fast display function is accessible, with a data update rate of up to 50ms. This accelerates the testing process, saving users time. When the automatic rate updating mode is activated, it can track frequency signals as low as 0.1Hz, and the data update rate is automatically adjusted based on the frequency of the input signal. This enables more precise measurement of frequency variations.
Why should I choose INNO Instrument?
How can we make testing easier, faster and better? This is the challenge that INNO has been diligently addressing, and our team of experts continuously delivers outstanding and innovative solutions to tackle this issue.
We are currently collaborating closely with globally renowned automotive manufacturers and leading companies in battery, solar panel, energy storage, semiconductors, manufacturing, and R&D. Our objective is to consistently enhance our solutions and assist our customers in achieving industrial upgrades.
It is well-suited for applications in the renewable energy, battery, energy storage, and other related sectors. It is versatile and can be utilized in a variety of tests, offering strong extensibility.
It provides long-term real-time data storage and playback analysis.
Phase compensation is implemented to enhance power measurement accuracy.
