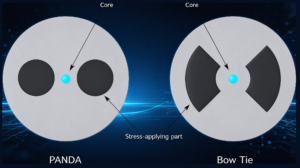

VIEW555 (PM Fiber 3-Electrodes)
VIEW555 3-Electrodes has been designed for fixing uneven heating.
Its three-phase discharge wraps fully around the fiber. The fiber optics glass is heated by glowing recombined plasma radiation, instead of only hitting one side from particle impact. This creates an even heat ring around the fiber. The refractive index shape stays symmetrical, and the fiber’s mode properties remain steady even after repeated re-arcing — unlike 2-electrode splicers, which get worse over time.
This single heat source can strip polyimide coatings, make tapers, form end caps and mode field adapters, and fabricate optical combiners for special fibers including multi-core and hollow-core types.
Overview
Welcome your visitors with elegance and flexibility and center the world around your website.
- Create unique websites
- Automate your busy work
- Optimize all your efforts
Applications
Change the colors to match your brand and vision, add your logo, swap out the content and you are good to go.
- Give your website a name
- Add your unique content
- Add your stunning images
Package
Change the colors to match your brand and vision, add your logo, swap out the content and you are good to go.
- Give your website a name
- Add your unique content
- Add your stunning images
Support & Downloads
With Ekko you don't need to know any code to create a beautiful website.
- Support forums
- Video tutorials
- Extensive documentationproduct_support
How To Buy
An attractive, user-friendly website can give your business the edge over the competition.
- Creative campaigns
- Google Analytics
- Social Mediaproduct_
Description

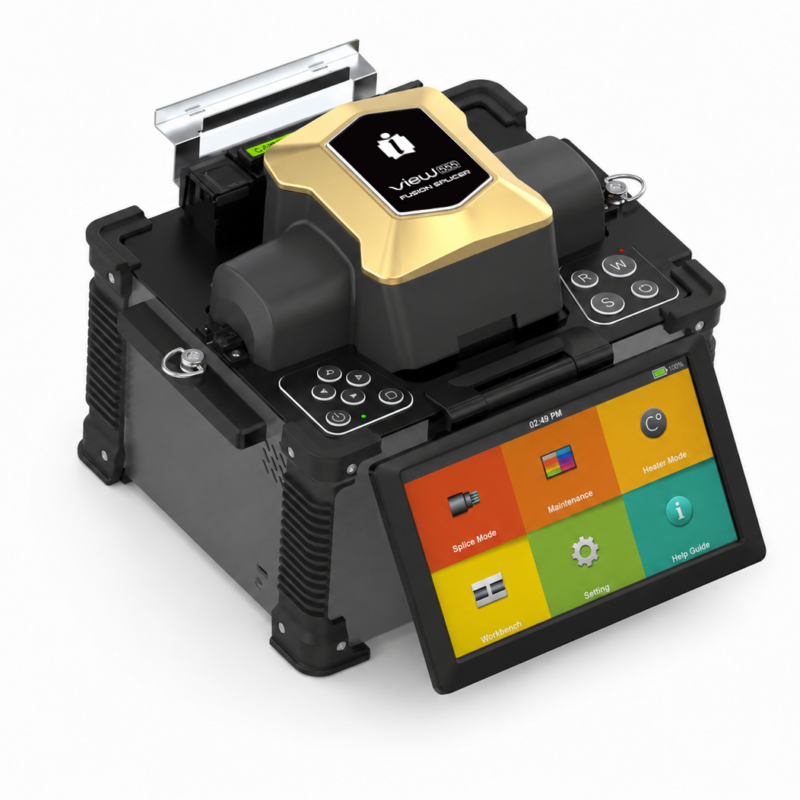

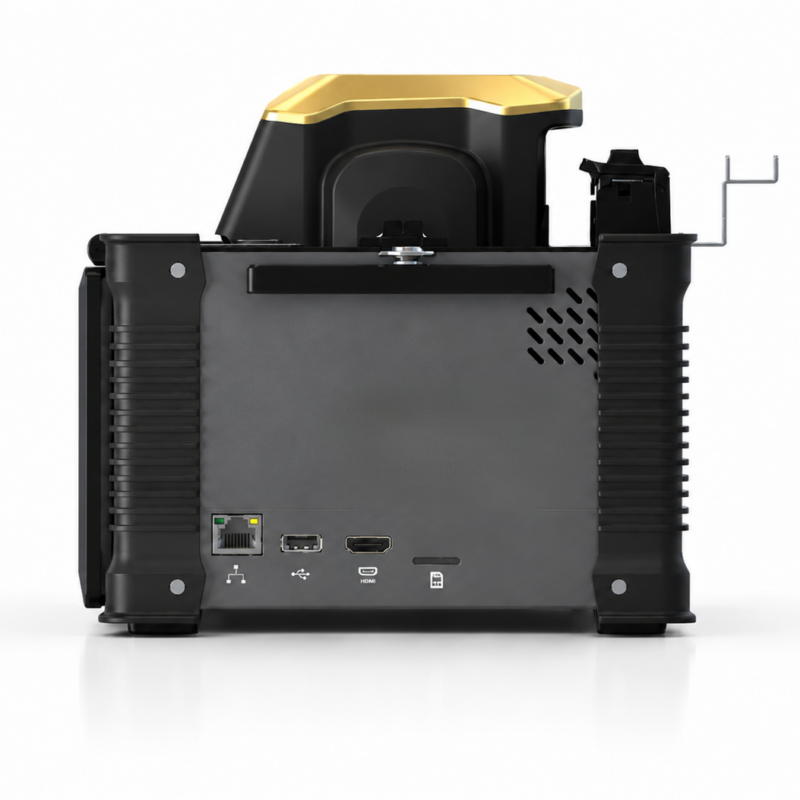

VIEW555 MAX, a PM Fiber 3-Electrodes splicer with the fully motorized clamp alignment system, is the most powerful and state-of-the-art PM splicer in the market.
Its advanced automatic clamp alignment system offers an accurate and dependable ribbon fiber splicing up to 12 fibers with double-tapping (Zoom in & out) and scrolling to the world’s highest magnification of 250x for ribbon splicer.
The VIEW555 MAX provides maximum work efficiency through the fast splicing & heating time, ultra-high battery capacity of 220 splice/heat cycles,
and universal holder both for 250μm & 900μm single fiber. The VIEW555 MAX delivers the most reliable work experiences.
Specification Overview
Explore the superior specifications of our product, designed with cutting-edge technology to deliver unmatched performance. Each feature is crafted to ensure reliability, efficiency, and user satisfaction, enhancing your experience in remarkable ways
| Splicing Technology | 250x magnification |
| Splicing Time | 9 seconds (single fiber) / 15 sec (ribbon fiber) |
| Heating Time | 20 seconds (typical heating time) |
| Typical Loss | SM: 0.05dB / MM: 0.02dB / DS: 0.08dB / NZDS: 0.08dB / G.657: 0.05dB |
| Size (HWD) | H: 167mm W: 143mm D: 159mm |
| Weight | 2.64kg (with battery) / 1.98kg (without battery) |
Applications
Package & Accessories
| Product | Type |
|---|---|
| Cleaver | V7 |
| Thermal Stripper | TS Pro |
| Fiber Holder | FH-12,FH-250 |
| SOC Holder | SH-SOC-R |
| SOC Heater Cover | HTS-SOC-01 |
| AC Adapter | JS-180300 |
| Cooling Tray | CG-22 |
| Electrode | E-50 |
| Battery Pack | LBT-30 |
| Power Cable | ACC-25 |
| Carrying Case | ICC-55 |
| Work Tray | IWS-06 |
| Work Tray Bolt (M6*8) | WTB-01 |
| Shoulder Strap | ST-01 |
| USB Cable | USB-7P |
| USB Cable | USB-10P |
| V-Groove Cleaning Brush | CB-01 |
| Thermal Stripper Charger | JS-1500 |
| Optional Accessories | Type |
|---|---|
| Fiber Holder | FH-12-200/250,FH-10,FH-8 1 set |
| Ribbonizer | RN Plus |
| Stripper | TK02-MP01 |
| Cigarette Lighter Cable | CJ-11 |
| Electrode Grinder | EG-18 |
| Heating Sleeve(40mm) | PS-12R-40 |
| Heating Sleeve(60mm) | PS-60S |
Support & Downloads
Technical Help & Support
We're committed to providing exemplary support and technical services. Our dedicated team of skilled professionals is always ready to assist, ensuring smooth operation and optimal performance for all INNO products.
InnoCare24
InnoCare 24 is a fast and complete service where our technical support team and authorized distributors respond to customer inquiries within 24 hours via telephone, email, or even in person.
Warranty
INNO Instrument’s warranty is a testament to our confidence in the quality and durability of our products, providing customers with reassurance and support throughout their usage.
For Distributors/Partners
Our global network of distributors can access comprehensive resources and direct support through our Services Portal, specifically designed to streamline troubleshooting, service requests, and product information updates.
| Version | Description | Specific Instructions | Download |
|---|---|---|---|
| 1.01 | Added ON/OFF option for the connection feature in the connection options General improvements | Extract the package. First place F12_sw_m6.bin and res.zip in the USB root and run the upgrade. Then place the firmware ZIP in the USB root as update.zip and run the upgrade again. | Download 1.01 |
Firmware Update Instructions
| Update Instructions | |
| Prepare USB | Format a USB drive as FAT32. |
| First stage | Extract the downloaded package and place F12_sw_m6.bin and res.zip directly in the USB drive root. Run the upgrade. |
| Second stage | Place the firmware ZIP in the USB drive root as update.zip (the device also accepts a renamed ZIP according to the legacy table) and run the upgrade again. |
PC Program Instructions
