VIEW6S

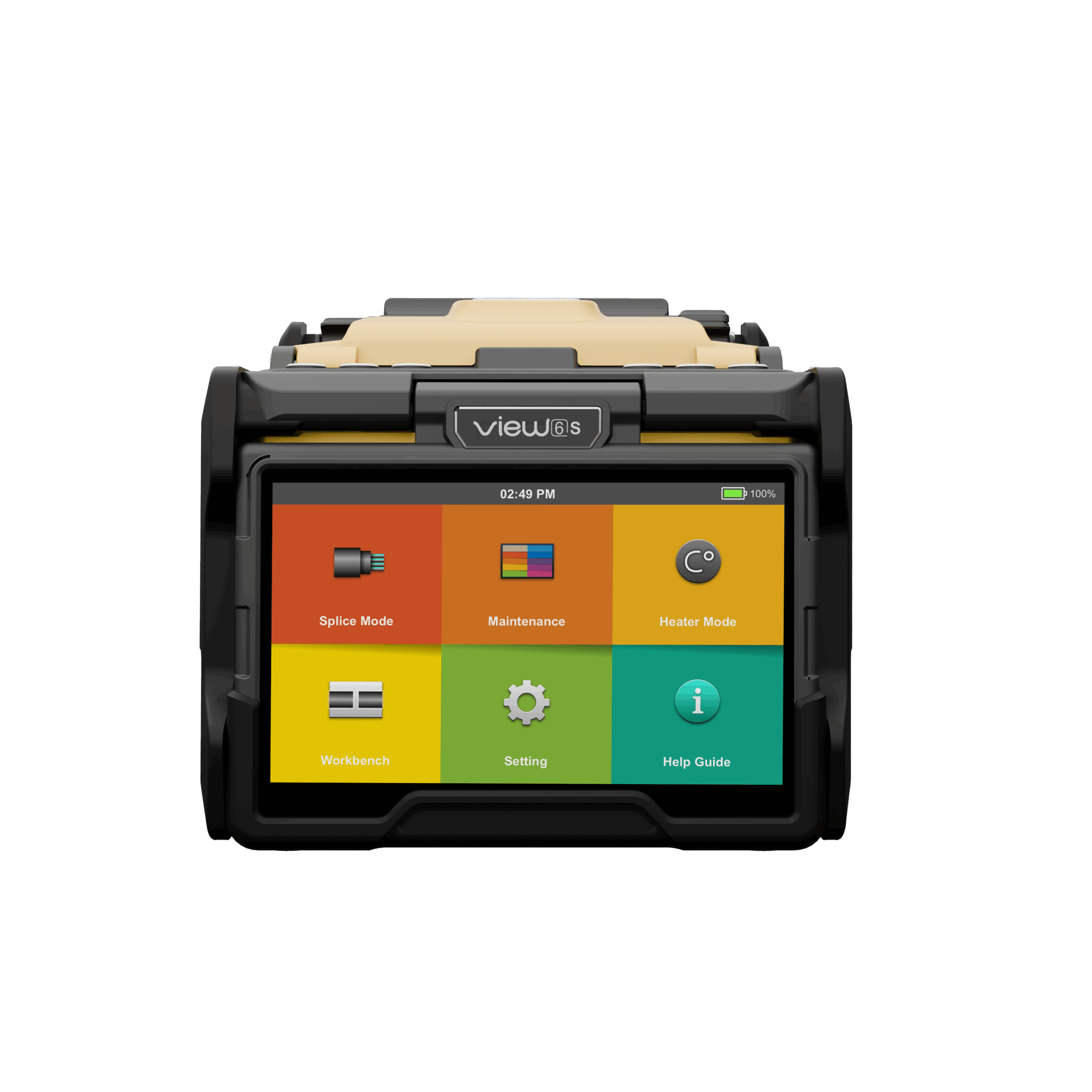

The VIEW 6S Arc Fusion Splicer from INNO Instrument features a product design and manufacturing technology focused on enhancing the splicing experience. This technology effectively reduces splicing and heating times. Its advanced estimation method and alignment technique are designed to improve the accuracy of splice loss estimation.
Description
The View 6S core-alignment fusion splicer, known for its high fiber image magnification rate, is a specialized tool provided mainly to major telecommunications operators. It features a 5-inch high-resolution color LCD touchscreen, complemented by an intuitive graphical user interface (GUI), which presents large and clear fiber images. Users can easily zoom in and out up to a magnification of 520x by double-tapping the screen. The View 6S enhances work efficiency with its quick 13-second heating time and is particularly effective in the FTTx field. It is compatible with a wide range of fiber-optic cables, and its short v-groove length allows for splicing with a 5mm cleave length, suitable for splice-on connectors. Additionally, it is equipped with 3 LED lights to illuminate the work area in low-light conditions. The View 6S is designed to offer dependable and tailored solutions to meet the specific needs of its users.
Firmware & PC Software
| Version | Description | Download |
|---|---|---|
| V1.33 | 1. Bug fix in SM_AUTO program when G652D-G657A2 fibers are splicing. | Download V1.33 |
| V3.04 | 1. General Update and minor bug fix | Download V3.04 |
| V3.01 (only for the VIEW6S with V2.xx) | 1. Modify internal menu | Download V3.01 (only for the VIEW6S with V2.xx) |
| V2.01 (only for the VIEW6S with V2.00) | 1. Optimize splicing time 2. Update battery status calibration 3. Adjust pre-heat temperature 4. Bug fix for Focus adjust 5. Bug fix for Splice record export 6. Now splicer remain the motor history | Download V2.01 (only for the VIEW6S with V2.00) |
Firmware Update Instructions
Please place two upgrade files into USB driver.
Two upgrade files must be out of folder in driver.
| VIEW6S | |||
| Latest version is V1.33 | |||
| Stated Version | Can Upgrade To | Upgrade way | Requirement after an upgrade to the latest version |
|
V1.00
~ V1.21 |
Latest | 1. Place "F6_sw_f6s.bin", "res.zip" files into USB driver | Run all maintenance menu after upgrade |
|
V1.22
~ V1.26 |
Latest |
1. Place "update.zip" file
(update.zip file must contain "F6_sw_f6s.bin" and "res.zip" files) |
No requirement after upgrade |
|
V1.27
~ |
Latest |
1. Place "update.zip" file
which can be renamed or 2. Place "F6_sw_f6s.bin", "res.zip" files into USB driver |
|
| VIEW6S (Ver.2) - Only for the VIEW6S with V2.xx~V3.xx | |||
| Latest version is V3.04 | |||
| Stated Version | Can Upgrade To | Upgrade way | Requirement after an upgrade to the latest version |
|
V2.00
~ V2.01 |
Latest | 1. Place "Bitmap" folder, "F19.bin", F19.bit", "upgrade.bmp" files in USB driver | Run all maintenance menu after upgrade |
|
V3.00
~ |
Latest | 1. Place "Bitmap" folder, "F19.bin", F19.bit", "upgrade.bmp" files in USB driver | No Requirement after upgrade |
PC Program Instructions
Nothing to Display
